Edge spreyers
Quality and Economy - from professionals for professionals.
The schäfer-technic SKS Joint-Spraying Machine is specialized for the treatment of the centre joints and sealing of the road flanks.
SKS Joint-Spraying Machine transport, heat-up and spray hot asphalt, polymer bitumen for road construction according to the requirements of the German Standard M SNAR.
Due the special road construction site requirements and synergies we built a range of multifunctional machines according to customers request.
By means of the vast experience of our specialists and of the close cooperation with our key customers we permanently optimize the technical level of our machines!
Layer composite
Important precondition for long lasting road surfaces is a proper cohesion between each layer.
A complete and durable cohesion between the layers assures that the package of road courses will stand the permanent load everlasting. The layer composite results from cohesion, adhesion and mesh between the courses.

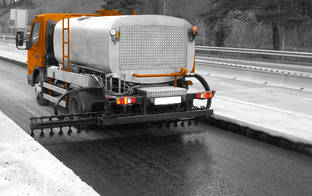

Centre Joint

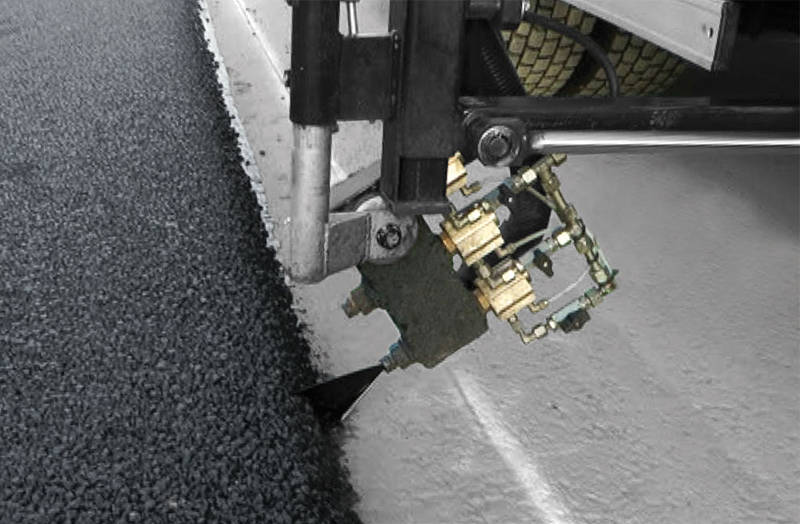

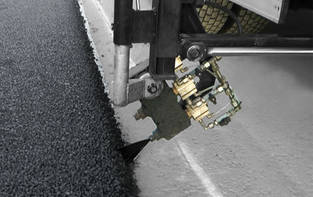

Centre joints result from applying two hot-mix courses aside each other “hot to cold” – no matter whether length – or crosswise. Hot bitumen sprayed onto the joint of the “cold” hot-mix course will create a perfect joint-sealing to the “hot” new hot-mix course to be applied afterwards.

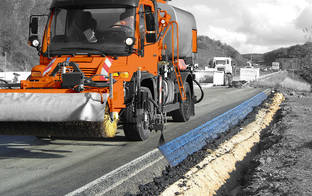

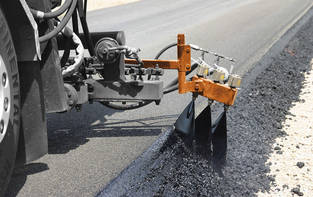

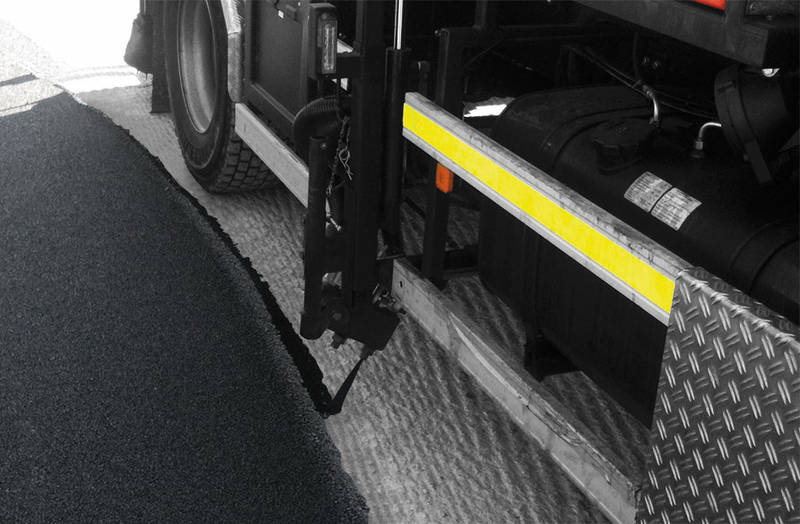

Edge sealing
Sealing of the flanks of the asphalt road. To avoid the water penetrating into / between the asphalt courses they get sealed by spraying hot asphalt – up to 4 kg/m.
Model Overview

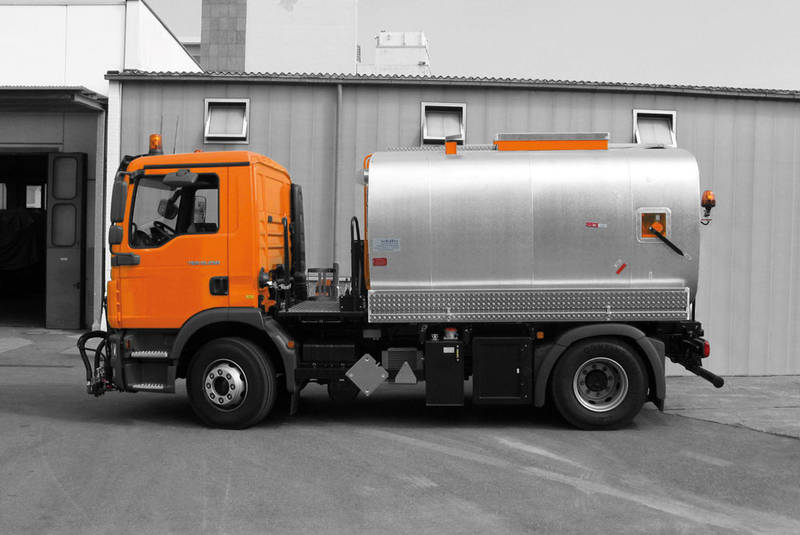

SKS-A 5000 - Truck mounted

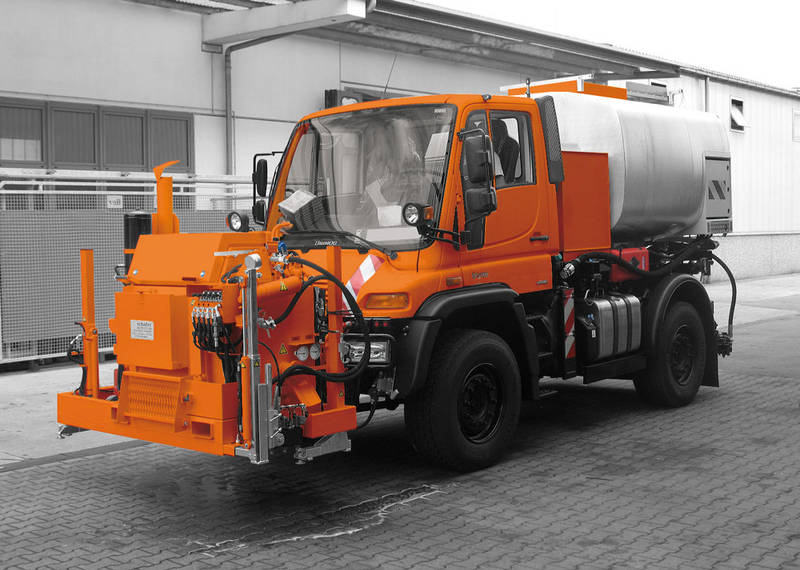

SKS-F 200 - Front mounted, hydraulic adjustment
SKS - Unimog, interchangeable system, hydraulic adjustment

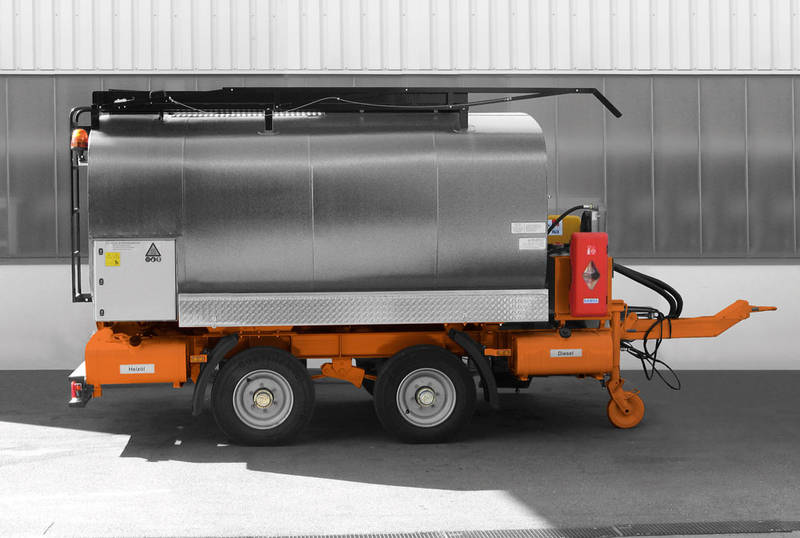

SKS-T 5000 - Trailer, thermal oil heating
SKS-A 500 - Truck mounted, hydraulic adjustment
Technical Specifications
| Type | Tank capacity (l) | Drive | Heating system |
|---|---|---|---|
| SKS-A | 3.000 - 8.000 | Truck hydraulic | Oil burner 200°C direct/indirect |
| SKS-T | 3.000 - 5.000 | Diesel engine approx. 24 kW | Oil bruner 200°C indirect |
| SKS | 200 - 500 | Truck/Unimog hydraulic | Oil bruner 200°C indirect |
| SKS-F200 | 200 | Truck/Unimog hydraulic | Oil bruner 200°C indirect |
| LS-Serie-KA | 200 - 500 | Diesel engine approx. 10 kW | Oil bruner 200°C indirect |
